High-Performance Polyester Film Insulation Tape for Electrical and Electronic Applications

In electrical and electronic manufacturing, insulation materials are often judged not by appearance, but by reliability under repeated thermal, mechanical, and electrical stress. Polyester film insulation tape is a critical material in this environment because it combines dielectric strength, dimensional stability, chemical resistance, and clean handling in a thin, flexible format. The LY-XX polyester film insulation tape series is designed for applications where stable insulation performance, dependable adhesion, and consistent quality are essential.

This tape uses polyester film, also known in many industrial contexts as Mylar-type film, as the base material. Depending on the specific model, it is coated with rubber-based or acrylic-based pressure-sensitive adhesive. The result is a practical insulation tape suitable for coil wrapping, transformer insulation, motor and generator assembly, battery pack fixation, internal electronic component bundling, and electrical labeling. In these uses, the tape must do more than simply stick to a surface; it must retain electrical insulation, resist solvents, remain stable under heat, and support efficient production.

Compared with ordinary general-purpose tapes, polyester film insulation tape offers a much more specialized balance of performance. It provides high tensile stability, thin and uniform insulation layers, strong dielectric properties, and better resistance to many industrial process conditions. The LY-XX series further strengthens these advantages through controlled production, quality testing, and certification support. With in-house control from raw material processing through adhesive synthesis, coating, and slitting, the product is manufactured for consistency rather than only basic usability.

LY-XX Mylar Tape

Product Overview

The LY-XX polyester film insulation tape is an insulating adhesive tape made from PET polyester film. PET film is widely selected for electrical insulation because it offers good mechanical strength, stable thickness, low moisture absorption, and reliable dielectric performance. These features make it suitable for electrical insulation systems where precision, repeatability, and compact construction are required.

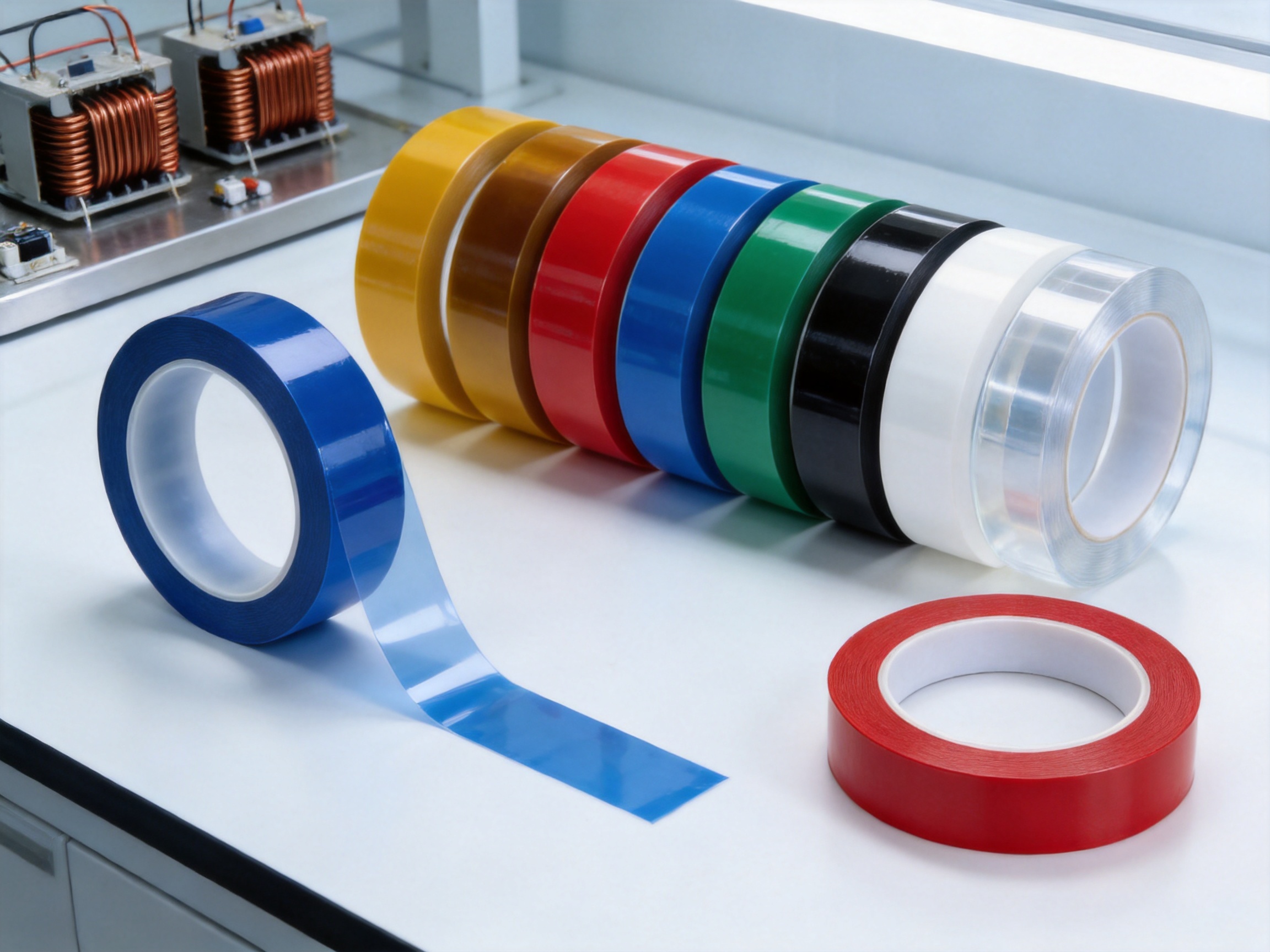

The tape is available in multiple colors, thicknesses, and structural configurations. Standard versions include dark yellow, light yellow, red, blue, green, black, white, and transparent options. Different colors allow manufacturers to identify winding stages, classify components, support visual inspection, or meet customer-specific assembly requirements. Thickness options range from ultra-thin designs for compact electronic assemblies to thicker and composite-layer versions for higher withstand voltage requirements.

The adhesive system is selected according to product needs. Acrylic adhesive versions are especially valued for insulation applications requiring flame retardancy, solvent resistance, and stable aging performance. Rubber-based adhesive versions may be selected where specific tack, bonding behavior, or application conditions require them. The series is designed for use in temperature conditions typically ranging from -40°C to 130°C, subject to the exact model datasheet and application method.

In electrical insulation, small differences in film thickness, coating weight, adhesive uniformity, and surface cleanliness can affect long-term performance. This is why the LY-XX series emphasizes full-process quality management. Instead of relying only on final inspection, the manufacturing approach controls multiple earlier stages, including pigment grinding, adhesive preparation, coating uniformity, and slitting precision. This helps reduce variation between batches and supports dependable use in automated or semi-automated production lines.

Why Polyester Film Is a Preferred Insulation Substrate

Polyester film is one of the most commonly used polymer films in electrical insulation. Its popularity comes from a combination of strength, electrical performance, and process compatibility. In transformer and motor manufacturing, insulation materials must endure wrapping tension, compression, heat, vibration, and possible contact with varnishes or solvents. PET film is well suited for these requirements because it remains dimensionally stable and maintains useful mechanical properties in thin gauges.

Compared with paper-based insulating tapes, polyester film tape generally provides stronger dielectric performance at a lower thickness. This is important in compact electronic transformers, miniature motors, battery modules, and other devices where internal space is limited. A thinner insulation tape can reduce bulk while still providing electrical separation and mechanical protection.

Compared with many general plastic films, polyester film offers better balance between heat resistance and mechanical toughness. It does not tear easily during normal wrapping, and it can be slit into narrow widths with clean edges. Clean slitting is important because rough edges can create weak points, dust contamination, or inconsistent winding during high-speed production.

Polyester film also offers good chemical resistance. In electrical and electronic manufacturing, insulation tape may be exposed to soldering environments, cleaning agents, impregnation varnishes, oils, and other process materials. While performance always depends on the exact chemical and exposure conditions, the LY-XX series is designed with excellent solvent resistance, helping it remain reliable in demanding assembly environments.

Key Product Advantages

Stable Electrical Insulation Performance

The primary purpose of this tape is insulation. The LY-XX series provides strong dielectric performance across several thickness options. Standard 0.025 mm film versions with a total thickness of approximately 0.055 mm can achieve a withstand voltage of about 4.2 kV. Thicker 0.05 mm film versions with a total thickness of approximately 0.08 mm can reach about 5 kV. Composite double-layer and three-layer versions offer higher values, reaching approximately 6.5 kV and 8 kV respectively. Ultra-thin versions are also available for applications where compact design is the priority.

This range allows engineers to select the right insulation level without overbuilding the product. A compact electronic component may require a thin tape that provides sufficient insulation while minimizing bulk. A transformer coil or higher-voltage component may require thicker or composite-layer tape. This flexibility is an advantage over suppliers that offer only one or two standard thicknesses.

Reliable Adhesion for Assembly Efficiency

In production, tape failure is not only an electrical issue; it is also an assembly issue. If tape lifts, shifts, curls, or fails to hold during winding, production efficiency decreases and rework increases. The LY-XX series is designed with pressure-sensitive adhesive systems that provide practical adhesion to common electrical and electronic component surfaces. Its peel strength values are typically listed at 250 N/m or higher for most standard models, supporting stable bonding in wrapping, bundling, and fixation.

Proper adhesion also helps maintain insulation position. In transformers, motors, generators, and battery packs, the tape must stay where it is applied. During handling, winding, assembly, and later operation, displacement of insulation material can create quality risks. A tape with stable tack, controlled coating thickness, and clean unwind behavior improves both product reliability and manufacturing efficiency.

Flame-Retardant Options

Many models in the LY-XX series comply with flame-retardancy requirements associated with UL 510. Flame retardancy is highly valuable in electrical insulation systems because it contributes to safer component design. While the tape is only one part of the total insulation system, flame-retardant tape can help manufacturers meet customer expectations and regulatory requirements in electronics, power equipment, and industrial electrical devices.

The availability of multiple flame-retardant colors is also useful. In many production settings, manufacturers prefer color-coded insulation. A supplier that can provide flame-retardant options in dark yellow, light yellow, blue, green, black, white, and other colors gives design engineers and production managers more freedom.

Excellent Solvent Resistance

Solvent resistance is a major practical advantage in coil and electronic component production. Tapes used in motors and transformers may contact varnishes, resins, cleaners, oils, or other process chemicals. If the adhesive softens, migrates, or loses bond strength, insulation reliability can decline. The LY-XX polyester film insulation tape is described as having excellent solvent resistance across its listed models, supporting use in electrical manufacturing environments where chemical exposure may occur.

Temperature Resistance up to 130°C

The tape is commonly rated for temperature resistance up to 130°C, depending on the exact model and application conditions. This level is suitable for many electrical insulation applications, including transformers, motors, electronic components, and other devices operating under moderate heat. The broad temperature usability from low temperatures to elevated operating conditions helps the tape support both storage durability and operating reliability.

Multiple Thickness and Construction Choices

A strong insulation tape portfolio should not force all applications into a single construction. The LY-XX series includes ultra-thin, standard, thicker, double-layer composite, and three-layer composite structures. This gives customers a practical selection path: choose thin tape for space-saving insulation, standard tape for general coil wrapping, thicker tape for stronger dielectric protection, and composite tape for higher withstand voltage requirements.

This variety is particularly useful for customers producing multiple product lines. A transformer manufacturer may need a standard yellow insulation tape for one product, a higher-voltage composite version for another, and color-coded tape for component identification. Purchasing from a single capable supplier simplifies sourcing, reduces qualification workload, and improves consistency across production.

Technical Specification Summary

Model or Type	Substrate	Adhesive System	Total Thickness	Peel Strength	Elongation	Withstand Voltage	Flame Retardancy	Temperature Resistance
Standard 0.025 mm color series	Polyester film	Acrylic adhesive	0.055 ± 0.005 mm	≥250 N/m	≥40%	About 4.2 kV	Available on most colors	130°C
Standard 0.05 mm color series	Polyester film	Acrylic adhesive	0.08 ± 0.005 mm	≥250 N/m	≥40%	About 5 kV	Available on most colors	130°C
Double-layer composite version	Polyester film composite	Acrylic adhesive	0.11 ± 0.01 mm	≥250 N/m	≥40%	About 6.5 kV	Yes	130°C
Three-layer composite version	Polyester film composite	Acrylic adhesive	0.16 ± 0.02 mm	≥250 N/m	≥40%	About 8 kV	Yes	130°C
Ultra-thin version	Polyester film	Acrylic adhesive	0.035 ± 0.003 mm	≥200 N/m	≥40%	About 3 kV	Yes	130°C

The table shows that the product range is not limited to one simple tape format. Instead, it provides an engineering selection platform. A customer can compare total thickness, insulation performance, flame-retardancy needs, and mechanical properties to choose a tape that fits the intended electrical system. This is especially important for manufacturers that must balance material cost, insulation reliability, space constraints, and production speed.

Applications in Transformers

Electronic transformers and power transformers require insulation materials that can separate windings, hold coil structures, and protect electrical components from short circuits. Polyester film insulation tape is commonly used for interlayer insulation, outer wrapping, lead wire fixation, and core or bobbin insulation. The LY-XX tape series is suitable for these purposes because it combines dielectric strength with flexible handling.

During transformer production, tape is often applied under tension. It must unwind smoothly, wrap evenly, and adhere securely without excessive stretching. A tape with poor film quality may tear, wrinkle, or develop uneven insulation thickness. A tape with inconsistent adhesive may leave residue or fail to bond. The controlled production process behind the LY-XX series helps minimize these problems by focusing on stable film coating, adhesive performance, and slitting accuracy.

For transformer manufacturers, flame-retardant certification and insulation system compatibility are also important. The tape’s UL recognition and inclusion in multiple insulation systems can reduce qualification concerns for customers. When a tape is already recognized within relevant systems, it gives manufacturers more confidence during material selection and product design.

Applications in Motors and Generators

Motors and generators create difficult conditions for insulation tapes. Vibration, heat, movement, and electrical stress can all affect material performance. In these applications, tape may be used for slot insulation support, coil end wrapping, lead fixation, phase insulation, and general bundling. A stable polyester film tape helps secure components and maintain insulation boundaries.

The mechanical strength of polyester film is valuable in motor production because the tape must withstand winding and assembly forces. The elongation value of at least 40% supports flexibility without immediate breakage during normal wrapping. At the same time, PET film offers enough dimensional stability to prevent excessive deformation. This balance helps the tape conform around coils while maintaining its insulating function.

Solvent resistance is also important in motor and generator manufacturing because coils may be impregnated with varnish or exposed to process chemicals. A tape that resists solvent attack helps preserve insulation integrity. The LY-XX series offers excellent solvent resistance, making it a suitable option for manufacturers that require dependable tape behavior before and after impregnation processes.

Applications in Battery Packs

Battery packs require reliable insulation and fixation materials. Whether used in consumer electronics, power tools, energy storage modules, or electric mobility components, battery assemblies must prevent unintended electrical contact while maintaining compact, stable construction. Polyester film insulation tape can be used to wrap cells, fix components, insulate tabs, protect edges, and separate conductive areas.

In battery pack production, tape thickness matters. Excessive thickness can reduce available space or interfere with module assembly. Ultra-thin polyester film tape can be valuable for compact designs, while thicker versions may be used where stronger insulation is needed. Color selection can also support production control, allowing teams to identify different insulation steps or battery pack zones quickly.

Adhesion consistency is especially important in battery applications. A tape that lifts from cell surfaces or internal components can create assembly defects. The LY-XX series is designed for stable bonding when applied to clean, dust-free, oil-free surfaces with adequate pressure. This supports dependable positioning during assembly and handling.

Applications in Electronic Components

Electronic components often require insulation tapes that are thin, clean, and precise. Capacitors, inductors, coils, relays, sensors, circuit assemblies, and small transformers may all use polyester film insulation tape. In these applications, the tape may act as an electrical barrier, mechanical protector, color identifier, or component fixation material.

The ultra-thin version of the LY-XX series is especially relevant to compact electronics. With a total thickness of approximately 0.035 mm and a withstand voltage of about 3 kV, it provides a useful combination of thinness and insulation. This helps engineers reduce component size without sacrificing necessary electrical protection.

For production teams, clean slitting and consistent roll quality matter. Narrow-width tape must run smoothly through manual, semi-automatic, or automatic application processes. If edges are uneven, rolls telescope, adhesive oozes, or unwind tension varies greatly, production speed suffers. The manufacturer’s in-house slitting and quality inspection capabilities support roll consistency and help customers maintain efficient assembly.

Advantages Over Ordinary Competitive Tapes

More Complete Process Control

Many tape suppliers purchase finished adhesive, outsource coating, or rely heavily on external processing. This may reduce their control over batch consistency. In contrast, the LY-XX series is produced through a closed-loop manufacturing approach. The company controls important stages including pigment grinding, adhesive synthesis, coating, and slitting. This in-house integration is a major competitive advantage because insulation tape quality depends on every stage, not only the final roll.

Pigment grinding affects color consistency, dispersion quality, and visual uniformity. Adhesive synthesis affects tack, peel strength, aging stability, flame-retardant behavior, and solvent resistance. Coating affects thickness uniformity and electrical reliability. Slitting affects edge quality, roll stability, and application performance. When these stages are coordinated under one quality system, the final tape is more predictable.

Stronger Quality Testing Capability

The company operates its own laboratory to support full-process testing from research and development to shipment. This is important because electrical insulation tape must be verified against multiple performance indicators. Testing may include thickness, peel strength, elongation, dielectric strength, flame retardancy, temperature resistance, solvent resistance, and appearance. In-house laboratory capability allows quicker feedback, better process adjustment, and more consistent shipment quality.

For customers, this translates into fewer surprises. Instead of receiving products that vary significantly between orders, customers can rely on a supplier that monitors technical parameters. This is especially useful for manufacturers with strict incoming quality control or customers that require documentation for insulation materials.

Certification and System Recognition

The tape is UL recognized in the United States and included in multiple domestic and international insulation systems. Certifications and recognition do not replace proper engineering evaluation, but they significantly support customer confidence. For manufacturers selling electrical or electronic products into regulated markets, using recognized materials can simplify product development and compliance planning.

Ordinary low-cost tapes may appear similar in color and thickness, but lack recognized performance data. When used in electrical insulation, such tapes can increase risk. The LY-XX series is positioned for professional insulation use, with specification data and certification support that differentiate it from non-specialized packaging or general masking tapes.

More Application-Specific Options

Competitive tapes often focus on one or two general-purpose models. The LY-XX series offers a broader range, including multiple colors, thicknesses, flame-retardant options, ultra-thin tape, and composite-layer tape. This helps customers choose a product based on actual engineering needs rather than accepting a compromise.

For example, a customer needing low-profile insulation may select the ultra-thin version. A customer needing higher withstand voltage may choose the three-layer composite version. A customer needing color-coded motor insulation may use blue, green, black, or white flame-retardant options. This flexibility reduces the need to source from multiple suppliers.

Balanced Performance Rather Than Single-Point Performance

Some tapes perform well in one parameter but poorly in others. A tape may have high adhesion but poor solvent resistance, or good dielectric strength but poor unwind behavior. The LY-XX series is designed as a balanced insulation tape. It combines peel strength, elongation, dielectric strength, flame-retardant options, solvent resistance, and temperature resistance in a practical range. This balanced performance is often more valuable than an extreme value in only one category.

Advanced Manufacturing Strength

The quality of insulation tape is created long before the finished roll reaches the customer. It begins with raw material selection, formulation design, coating process control, drying conditions, winding tension, slitting precision, and final inspection. The manufacturer behind the LY-XX series has built a production approach that supports stable output and scalable supply.

The company’s broader business covers the research, development, production, and sales of high-performance tapes and packaging materials. Its product range includes BOPP tapes, kraft paper tapes, masking tapes, high-temperature resistant tapes, metal tapes, PE stretch film, PP strapping, and high-strength PET strapping. This broad manufacturing background provides practical experience in adhesive coating, film handling, roll conversion, and industrial quality control.

Annual output value exceeding RMB 60 million indicates meaningful production capacity and market experience. For customers purchasing insulation tape, capacity matters because supply stability is part of quality. A technically capable supplier must also deliver on time, maintain batch consistency, support different roll sizes, and respond to order fluctuations. Manufacturing scale helps support these expectations.

Raw Material and Formulation Control

Polyester film insulation tape requires stable substrate quality and adhesive formulation. The substrate must meet thickness, tensile, dielectric, and surface requirements. The adhesive must be compatible with the film and with the intended application environment. By controlling adhesive synthesis and pigment processing, the manufacturer can better tune performance and maintain color and adhesive consistency.

In flame-retardant insulation tape, formulation control is especially important. Flame-retardant additives must be distributed properly, and the adhesive must still maintain bonding, aging, and processing performance. Poor formulation can cause weak adhesion, unstable color, excessive residue, or inconsistent flame performance. In-house process control helps prevent these issues.

Precision Coating

Coating is one of the most critical manufacturing steps. The adhesive layer must be even across the width and length of the film. If the coating is too thin in some areas, adhesion may be insufficient. If it is too thick, the tape may become bulky, ooze adhesive, or have inconsistent electrical behavior. Precision coating helps maintain total thickness, peel strength, and roll quality.

For insulation tape, total thickness affects dielectric strength and wrapping behavior. The LY-XX product data includes tight thickness ranges such as 0.055 ± 0.005 mm and 0.08 ± 0.005 mm for standard models. Achieving these values consistently requires controlled coating equipment, process monitoring, and skilled operators.

Controlled Slitting and Roll Conversion

After coating, the tape must be slit into customer-specified widths. Slitting quality affects how the tape performs during use. Clean edges reduce dust and improve winding appearance. Stable roll tension prevents telescoping, edge deformation, and uneven unwind. For narrow electronic insulation tapes, slitting precision is especially important because small width variation can cause application problems.

In-house slitting gives the company better control over final roll quality and delivery flexibility. Customers may require different widths, lengths, core sizes, or packaging formats. A supplier with internal conversion capability can respond more quickly and maintain better quality traceability.

Laboratory Testing and Continuous Improvement

The in-house laboratory supports the entire product cycle. During development, testing helps refine formulas and constructions. During production, testing verifies whether batches meet specifications. Before shipment, testing helps confirm outgoing quality. This laboratory-supported approach is a practical advantage over suppliers that only conduct visual checks or outsource all testing.

Continuous improvement is also easier when test data is available. If a customer reports a specific application requirement, the technical team can compare it with measured product properties and adjust recommendations. This supports a more professional supplier-customer relationship and helps customers solve real production challenges.

Handling and Storage Recommendations

Even high-quality insulation tape must be stored and used correctly. The tape should be kept in a cool, dry place at room temperature, generally around 20°C to 25°C. Excessive heat, humidity, direct sunlight, or contamination can affect adhesive performance over time. Rolls should remain in their original packaging until use to reduce dust and moisture exposure.

Before application, the bonding surface should be clean and free from oil, dust, release agents, moisture, and loose particles. Contaminated surfaces reduce adhesive contact and may lead to lifting or weak bonding. In electrical assembly, surface cleanliness is especially important because poor adhesion can affect insulation placement.

Adequate pressure should be applied during bonding. Pressure-sensitive adhesives require pressure to flow into surface irregularities and create close contact. Light placement without pressure may not deliver full adhesion. For wrapping applications, consistent tension and overlap should be used according to the customer’s process requirements and the product technical datasheet.

Users should evaluate the tape under actual application conditions before mass production. Factors such as surface material, winding tension, operating temperature, chemical exposure, voltage level, and component geometry can all influence performance. The product datasheet should be consulted for specific operating parameters.

Quality Considerations for Buyers

When selecting polyester film insulation tape, buyers should consider more than price per roll. The real cost of insulation tape includes production efficiency, rejection rate, compliance risk, and long-term reliability. A low-cost tape that causes rework, electrical failure, or customer complaints may be more expensive than a certified, stable product.

Important selection factors include substrate thickness, total thickness, adhesive type, peel strength, dielectric strength, flame-retardancy status, temperature rating, solvent resistance, color, roll dimensions, and certification support. Buyers should also assess supplier capability. A supplier with integrated manufacturing, laboratory testing, and stable output is better positioned to support long-term production.

The LY-XX series addresses these purchasing concerns by offering clear specification choices and controlled manufacturing. Its product range supports both standard and specialized needs, and its certification background helps customers in electrical and electronic markets.

How the Tape Supports Safer and More Efficient Production

In modern manufacturing, materials are expected to support safety, quality, and efficiency at the same time. Polyester film insulation tape contributes to safety by providing electrical separation and flame-retardant options. It contributes to quality by maintaining stable insulation placement and resisting solvents. It contributes to efficiency by offering clean handling, reliable unwind, and multiple thickness and color choices.

For production managers, consistent tape performance reduces line interruptions. Operators can apply the tape with fewer breaks, fewer adhesion problems, and fewer appearance defects. For engineers, reliable specifications simplify design choices. For quality teams, laboratory testing and certifications support documentation and incoming inspection. For purchasing teams, a broad product range from a capable manufacturer simplifies sourcing.

This combination of benefits is what makes the LY-XX series valuable. It is not simply a strip of adhesive film; it is a functional insulation material produced through controlled processes for demanding electrical and electronic applications.

Frequently Asked Questions

What is polyester film insulation tape used for?

Polyester film insulation tape is used for electrical insulation, coil wrapping, component bundling, battery pack fixation, transformer insulation, motor insulation, generator assembly, and electronic component protection. It provides a thin insulating layer with good dielectric strength and mechanical stability.

What is the main substrate of the LY-XX insulation tape series?

The main substrate is PET polyester film. This material is selected because it offers good dielectric properties, mechanical strength, dimensional stability, and resistance to many industrial conditions.

What adhesive systems are available?

The tape may use acrylic-based or rubber-based pressure-sensitive adhesive depending on the specific model. Acrylic adhesive versions are especially common in flame-retardant electrical insulation applications because of their stable aging, solvent resistance, and insulation performance.

What temperature can the tape withstand?

The typical temperature resistance is up to 130°C, depending on the exact model and application conditions. Users should consult the product technical datasheet and test the tape in their actual operating environment.

Does the tape have flame-retardant options?

Yes. Many models in the series are flame-retardant according to UL 510-related requirements. Flame-retardant availability may vary by color and model, so customers should confirm the required version before ordering.

What withstand voltage options are available?

Different models provide different dielectric performance. Standard thin versions may offer about 4.2 kV, thicker versions about 5 kV, double-layer composite versions about 6.5 kV, and three-layer composite versions about 8 kV. Ultra-thin versions may provide about 3 kV.

Why are there so many colors?

Color options support identification, process control, visual inspection, and customer-specific design. In electrical manufacturing, different colors may indicate different winding steps, voltage zones, product models, or inspection requirements.

How should the tape be stored?

It should be stored in a cool, dry place at room temperature, ideally around 20°C to 25°C. It should be protected from dust, oil, moisture, direct sunlight, and excessive heat.

What makes this tape different from ordinary packaging tape?

Ordinary packaging tape is designed mainly for carton sealing or general bonding. Polyester film insulation tape is designed for electrical performance, heat resistance, solvent resistance, flame-retardant options, and stable insulation. It is manufactured and tested according to much more specialized requirements.

Why is closed-loop production important?

Closed-loop production means key processes such as pigment grinding, adhesive synthesis, coating, and slitting are controlled in-house. This improves consistency, traceability, and quality control compared with production models that rely heavily on outsourced processing.

Can the tape be used in battery packs?

Yes. It is suitable for battery pack insulation and fixation when selected and applied correctly. Users should choose the appropriate thickness, voltage rating, and adhesive type for the battery design and verify performance under actual conditions.

Is surface preparation important before application?

Yes. Surfaces should be clean, dry, and free from oil, dust, and other contaminants. Adequate pressure should be applied during bonding to achieve optimal adhesion.

Conclusion

The LY-XX polyester film insulation tape series is a practical and reliable solution for electrical and electronic insulation applications. With PET film as the substrate, pressure-sensitive adhesive systems, multiple thicknesses, flame-retardant options, excellent solvent resistance, and temperature resistance up to 130°C, it offers the performance balance required by transformer, motor, generator, battery pack, and electronic component manufacturers.

Its competitive strength comes not only from product specifications, but also from the manufacturing system behind it. Closed-loop control of raw material processing, adhesive synthesis, coating, and slitting helps ensure stable quality. In-house laboratory testing supports development, production control, and shipment verification. UL recognition and insulation system inclusion provide additional confidence for customers working in regulated electrical and electronic markets.

For buyers seeking insulation tape, the most important question is not simply which tape looks suitable, but which tape can perform consistently in real production and long-term use. The LY-XX series answers this need with a broad product range, controlled manufacturing, and application-focused performance. It is a strong choice for manufacturers that require dependable insulation, efficient processing, and professional supplier support.

References

Underwriters Laboratories. UL 510 Standard for Polyvinyl Chloride, Polyethylene, and Rubber Insulating Tape.

IEC 60454. Specifications for Pressure-Sensitive Adhesive Tapes for Electrical Purposes.

ASTM International. ASTM D1000 Standard Test Methods for Pressure-Sensitive Adhesive-Coated Tapes Used for Electrical and Electronic Applications.

International Electrotechnical Commission. Electrical Insulation Systems and Thermal Evaluation Guidelines.

Technical literature on PET polyester film properties for electrical insulation applications.

Product: LY-XX Mylar Tape
